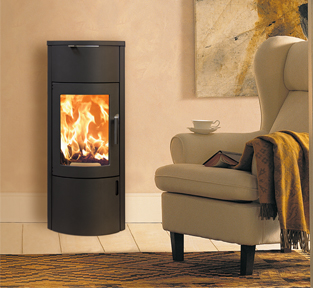

Wood Stove Bono
Wood stove bono is perfect for any size house and will keep you warm in the winter. It shows the warm glowing fire flames in a designer style wood stove.
| SKU |
121-BONO |
| Item |
Bono NEW |
| Output |
2.5 - 6.0 kW |
| Nominal |
4 kW |
| Size (mm) |
1150h x 460w x 434d |
| Weight |
243 kg |
| Flue Outlet |
ø 150 mm |
| Combustion Chamber |
(h x w x d) 510 x 257 x 260 mm |
| flue outlet diameter middle |
1000 mm |
| Nominal heat efficiency |
According to EN 13240 4kW |
| Min. / Max. output |
2,5 / 6 kW |
| Room heating capacity |
34 - 88 m3 |
| Heat Memory System |
Z / – |
| design 1 |
o1 |
| Cast iron top plate |
0 |
| Ceramic side panels |
KMG |
| steel side panels STM |
0 |
| Soapstone side panels SPM |
Z |
| Soapstone top plate |
Z |
| Ash Drawer |
0 |
| Unit in mm STM |
STM a 1679 / b 1000 / c 610 / d 201 |
| External Air Connection |
Back or Bottom |
| Accessories |
turning plate / turning plate compatible
with external air |
| Flue gas mass flow closed |
4,0 g/s |
| Flue gas temperature closed |
310° C |
minimum feed pressure at nominal heat
efficiency closed |
10 Pa |
| at 0.8 times of nominal heat efficiency |
8 Pa |
Please see Building Regulations for Wood Burning Stoves
|
