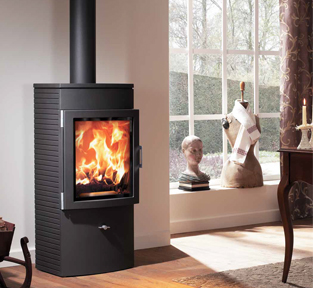

Wood Stove Chester ideal stove comes in a unique design and style and is perfect for every style home. There`s always one Chester fitting your home. All three models have a sturdy cast iron cladding in the finest stripe-look. The big Chester is also equipped with our exclusive Xtra heating technology, which enables heat storage for more than 12 hours.
| SKU |
121-CHESTER |
| Item |
Chester |
| Output |
3.5 - 8 kW |
| Nominal |
6 kW |
| Size (mm) |
1126h x 549w x 445d |
| Weight |
179 kg |
| Flue Outlet |
ø 150 mm |
| Ceramic Version |
h x w x d 810 x 549 x 445 |
| Combustion Chamber |
(h x w x d) 437 x 378 x 253 mm |
| weight STM / KMG / SPM |
179 / – / – kg |
| Flue outlet diameter middle |
990 mm |
| Nominal heat efficiency according to EN 13240 6 kW |
6kW |
| Min. / max. output |
3,5 / 9 kW |
Room heating capacity (depending on house
insulation) |
65 – 165 m3 |
| Design 1 |
01 |
| Cast iron top plate |
0 |
| Warming compartment / plate (w x d) |
- |
| Warming compartment |
- |
| Cooking compartment (w x d) |
- |
| Ceramic side panels KMG |
- |
| Steel side panels STM |
- |
| Ridding grate / ash drawer |
- |
| Grate with ash box |
- |
| Floor plate / flue pipe |
Z |
| Door handle |
- |
| Unit in mm |
STM a 1662 / b 990 / c 582 / d 222 |
External air connection / external air
connection |
- |
| Flue gas mass flow closed |
6,5 g/s |
| Flue gas temperature closed |
327° C |
Minimum feed pressure at nominal heat
efficiency closed |
10 Pa |
| At 0.8 times of nominal heat efficiency |
8 Pa |
