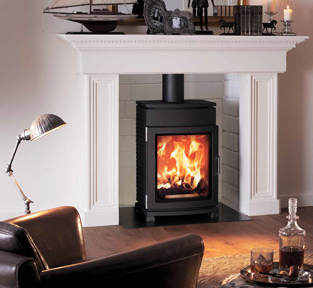

Big heat power! The Chester compact fits perfectly into existing open fireplaces. But also in many other places!
| SKU |
121-CHESTER-COMP |
| Item |
Chester Compact |
| Output |
3.5 - 8 kW |
| Nominal |
6 kW |
| Size (mm) |
810h x 549w x 445d |
| Weight |
148 kg |
| Flue Outlet |
150 mm |
| Ceramic Version |
h x w x d 810 x 549 x 445 |
| Combustion Chamber |
(h x w x d) 437 x 378 x 253 mm |
| Weight STM / KMG / SPM |
148 / – / – kg |
| Flue outlet diameter middle |
670 mm |
| Nominal heat efficiency according to EN 13240 6 kW |
6KW |
| Min. / max. output |
3,5 / 8 kW |
Room heating capacity (depending on house
insulation) |
65 – 165 m3 |
| design 1 |
o1 |
| Cast iron top plate |
0 |
| Warming compartment / plate (w x d) |
- |
| Warming compartment |
- |
| Cooking compartment (w x d) |
- |
| Ceramic side panels KMG |
- |
| Steel side panels STM |
- |
| Ridding grate / ash drawer |
- |
| Grate with ash box |
- |
| floor plate / flue pipe |
Z |
| Door Handle |
- |
| Unit in mm |
STM a 1346 / b 670 / c 685 / d 118 |
External air connection / external air
connection |
- |
| Flue gas mass flow closed |
6,5 g/s |
| Flue gas temperature closed |
327° C |
minimum feed pressure at nominal heat
efficiency closed |
10 Pa |
| At 0.8 times of nominal heat efficiency |
8 Pa |
